Designed for high-speed production lines, Aragon is the continuous movement shrink-wrap packaging machine with film feeder for the beverage industry end of line.

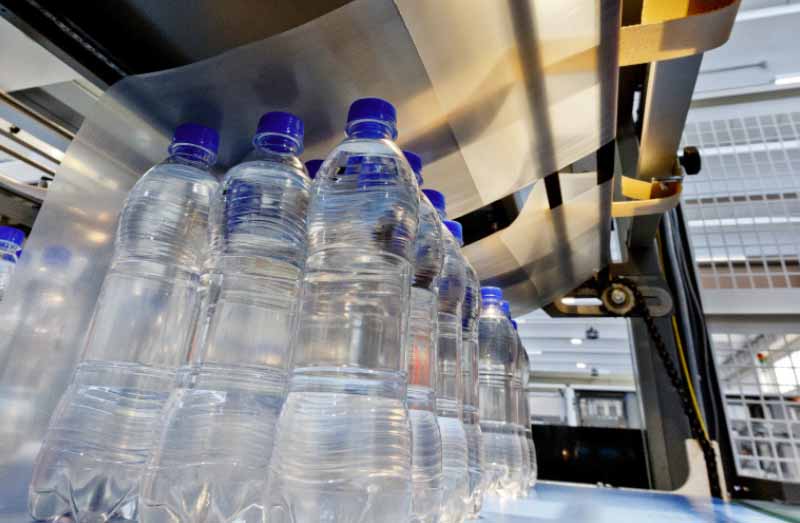

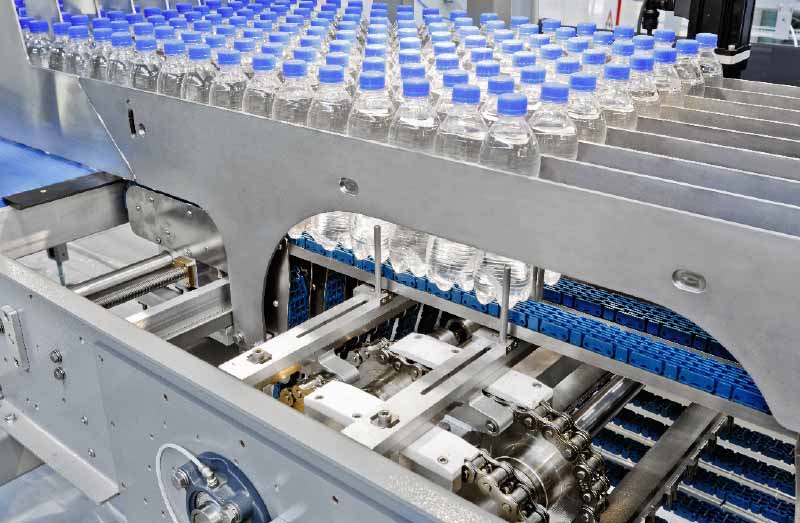

Such high speeds of production require maximum precision from every component, which is why Aragon boasts state-of-the-art mechanics, a product accompanying system that keeps the bottles stable even at top speed and is fitted with carbon fibre wrapping bars providing high rigidity and less weight, generating greater precision during the wrapping phase.
Speed, control and simple use are the distinguishing features of this automatic machine that requires minimum maintenance and is equipped with all the optionals to automate lubrication and reel replacement operations.
The entire packaging cycle is monitored by a series of mechanical and optic sensors that control the product in transit.

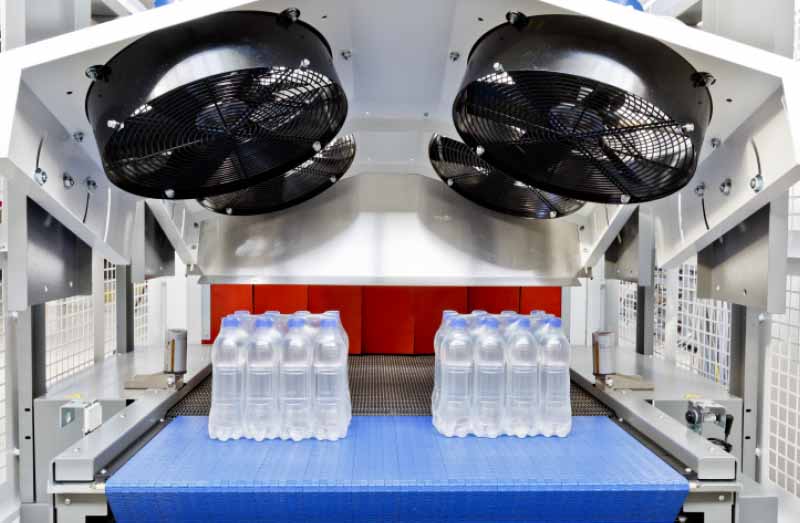

Heat-shrink tunnel with high-efficiency separated chambers to decrease energy consumption considerably.
Dedicated adjustable air flow partitions for each lane.
Pneumatic motor to empty oven in case of power shut off.
Sliding safety guards leave the operating areas completely free.
If you need more detailed information, our product managers are ready and willing to help.
We’ll answer your queries promptly.
Aragon is the continuous motion automatic shrink film packaging machine with film launch for lines that require a speed of up to 100 packs per minute in single lane and 300 packs per minute in triple lane.
Packaging: film
Dimensions: 18.029 x 1.653 x 2.105 mm (LxPxH)
Speed packages / minute: Single lane: 100, Double lane: 200, Triple lane: 300
Feeding: In-line 4 channels, Double and triple lane optional, Anti-jamming unit
Separation: Continuous
Oven: shrink tunnel
Fans: 4
Packaging: film
Dimensions: 16.050 x 1.653 x 2.189 mm (LxPxH)
Speed packages / minute: Single lane: 55, Double lane: 110, Triple lane: 165
Feeding: In-line 4 channels, Double and triple lane optional, Anti-jamming unit
Separation: Continuous
Oven: shrink tunnel
Fans: 5
Packaging: film
Dimensions: 18,029 x 1,653 x 2,105 mm (LxWxH)
Speed packages / minute: Single lane: 100, Double lane: 200, Triple lane: 300
Feeding:In-line 4 channels, Double lane and Triple lane optional, Anti-jamming unit
Separation: Continuous
Oven: shrink tunnel
Production speed: Up to 300 bundles/minute with triple lane
Film maximum width: 950 mm
Installed power: 96 kW
Voltage: 400V – 3 Phase / 50 Hz + N + G
Electrical protection: IP54
Compressed air consumption: 15 Nl/cycle at 6 bar
Operating temperature: min +5°C – max +40°C
Relative humidity: max 70%
Total weight:6,000 Kg
Machine colour: RAL 7037 (gray), RAL 3020 (red)
Printed film: centring

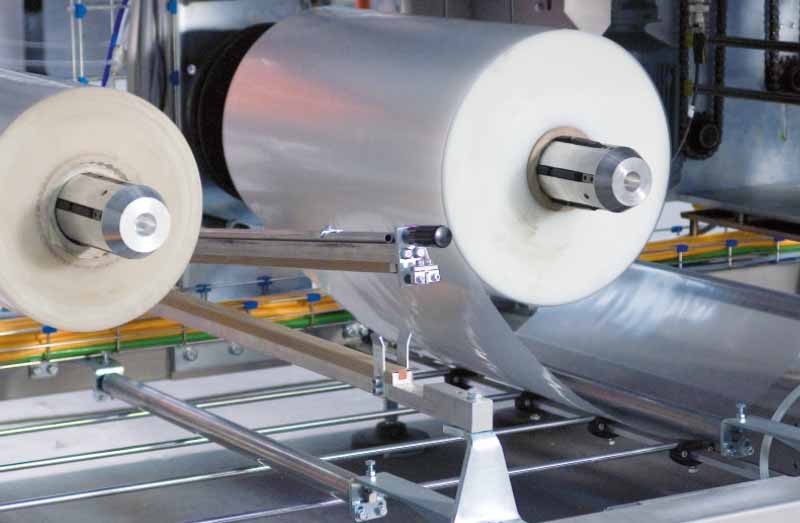

Automatic reel change with external film insertion
All machine adjustments can be performed electronically
Centralized lubrication
Modem for remote support and interface with central data collection system
Double or triple lane
